Description

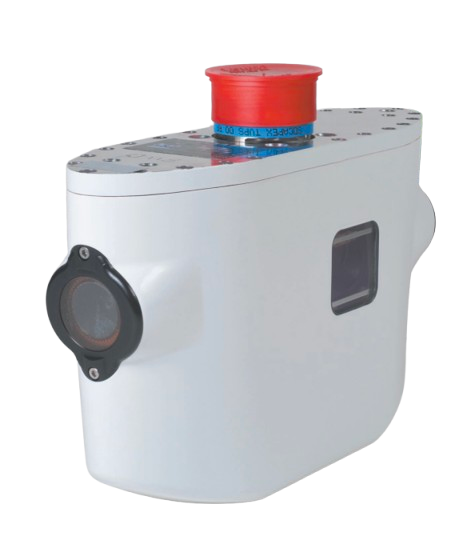

CAM4K-4 is a 4K-UHD ULTRA high definition airborne camera, fully integrated into a rugged and aerodynamic fairing.
Powered directly from the aircraft 28 VDC, this camera outputs Ethernet H265/H264 video stream to be interfaced directly to any IFE/CMS system for entertainment or PARABELLUM security system.
Designed to be installed on the aircraft tail or belly/fuselage, its high definition 12MPx imager works in lightning conditions from direct sunlight to extreme low-light.
Camera and window are heated for all-weather operation.
Technical drawing
P/N for: 1000-1340-00X
Mechanical specifications
Dimensions (HWD):
5.6×5.12×7.87 (inch)
140,4×130×200 (mm)
Material:
Aluminum AL2024 with anticorrosion treatment
White painted
Weight:
3 kg
6.61 lbs
Electrical specifications
Power:
28VDC
Consumption:
115W max
Digital video:
Multicast RTP
1Gbt-Ethernet 1080
Native H265 compression
Connector:
Mil-DTL-38999
Optical/Imaging:
Sensor CMOS 12MPx Electronic
Rolling Shutter
Field of view:
87°x64° for each view
