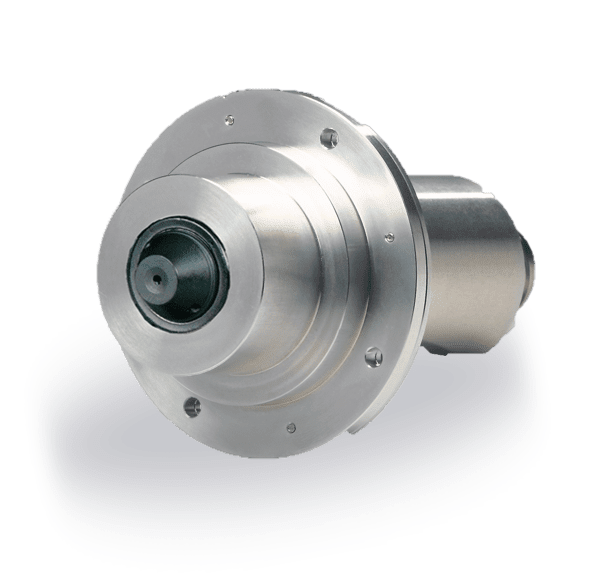

CAM HD PINHOLE

HIGH-DEFINITION CABIN SECURITY CAMERA
  • True high-definition 1080 camera
  • Simultaneous hd-sdi & ethernet video outputs
  • Conic pinhole lense for cover application
Description

Description

CAMHD-Pinhole is a cabin-mounted camera dedicated to security.

With its very little footprint, this camera is easely concealable in any door, panel, roof.

Designed for cabin surveillance and security application, this 1080 imager is able to monitor any cabin area.
Outputs video stream are compatible with any image recorder or display system and the Ethernet video flow (unicast or multicast) can be streamed through any viewer.

It is powered directly by A/C 28VDC.

Technical drawing

P/N for: 1000-D51687-00X

Technical Drawing

Mechanical specifications

Dimensions (HWD):

4.77×3.0x3.0 (inch)
121.14×76.2×76.2 (mm)

Material:

Aluminum AL2024 with anti-corrosion treatment White coating

Weight:

0.45 kg
0.99 lbs

CAM HD PINHOLE

Electrical specifications

Power:

28VDC

Consumption:

5W max

Digital video:

1080 HD-SDI
100Bt Ethernet 1080 native H264 compression (Other format MPEG available)

Connector:

Mil-DTL-38999

Optical/Imaging:

Sensor CMOS 3MP Electronic
Rolling Shutter S/N 38.1db

Field of view:

up to 60°x 35°
