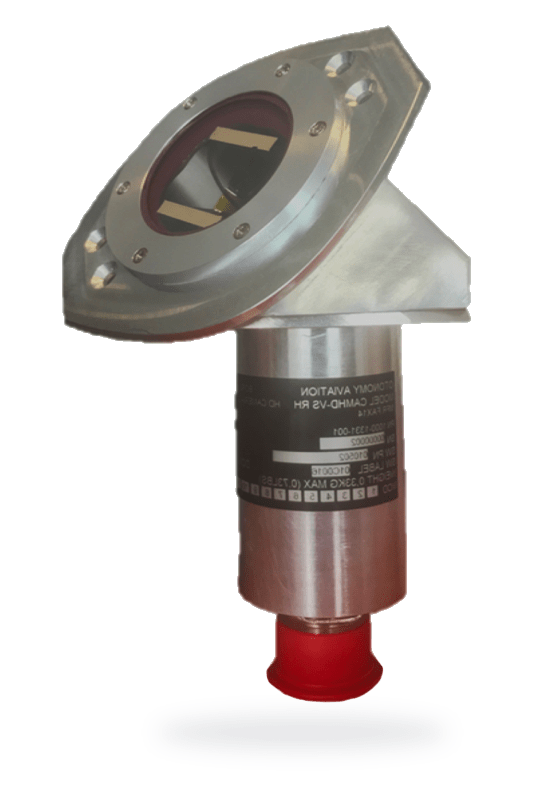

CAM HD VS

HIGH-DEFINITION VERTICAL STABILIZER CAMERA (TAIL)
  • True high-definition 1080 airbone camera
  • Low-profile, low-drag aerodynamic housing
  • Simultaneous hd-sdi & ethernet video outputs
;
Description

Description

CAMHD-VS is a high-definition airborne camera, fully integrated into a rugged, lightweight and aerodynamic housing.

Powered directly by the aircraft 28 VDC, this camera outputs simultaneously 1080p HD-SDI and Ethernet H264 video stream to be interfaced directly to any ICE/CMS system for entertainment or PARABELLUM security system.

Designed to be installed on the vertical stabilizer of the aircraft, this camera provides a comprehensive viewing area of the wingtip surrounding to help ground operation. Flush-mounted, it masters the aerodynamic efficiency, its high definition 1080 imager works in lightning conditions, from direct sunlight to extreme low light.

Camera and window are heated for all-weather operation.

Technical drawing

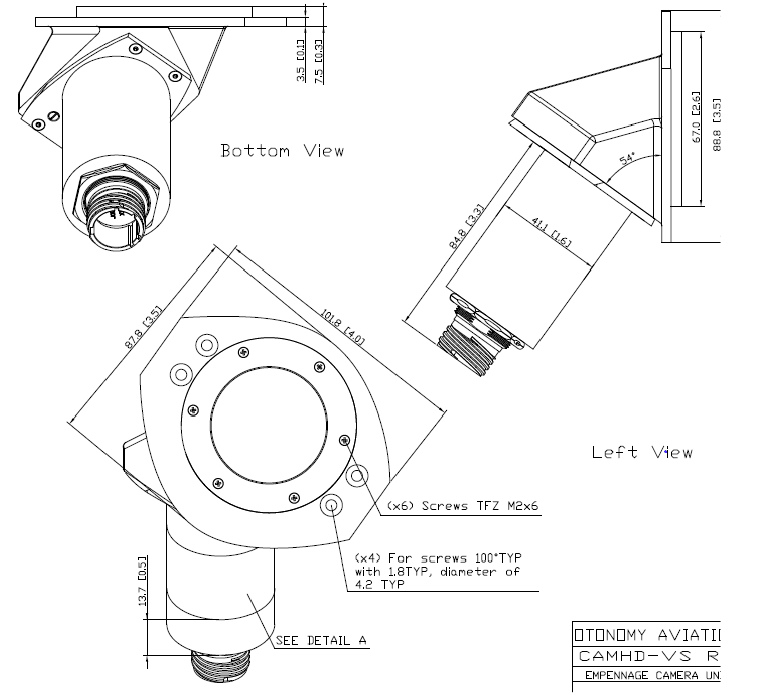

P/N for RH: 1000-1331-00X

Technical Drawing

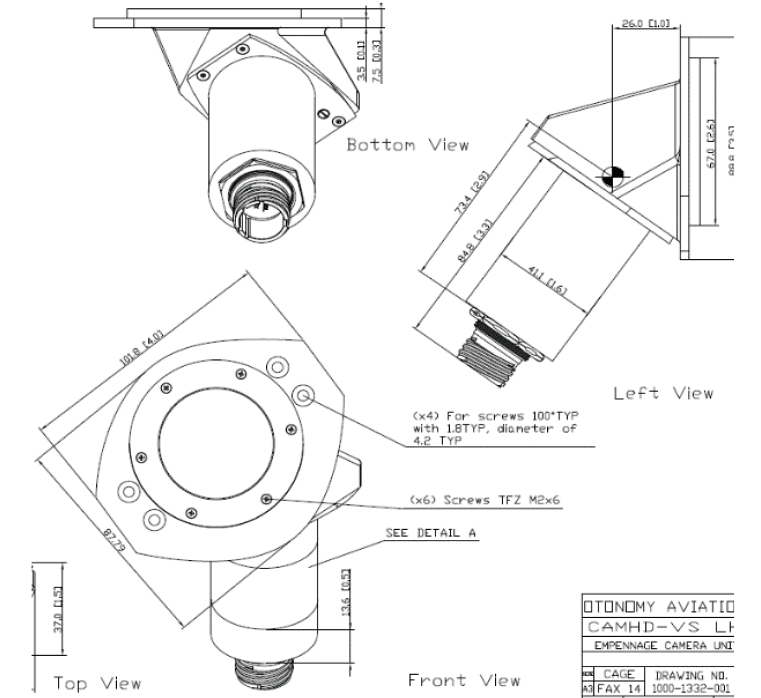

P/N for LH: 1000-1332-00X

Technical Drawing

Mechanical specifications

Dimensions (HWD):

4.0×3.5×9.7 (inch)
101.8×87.8×93.6 (mm)

Material:

Aluminum 5754 with anti-corrosion treatment White coating

Weight:

0.33 kg
0.77 lbs

CAM HD VS

Electrical specifications

Power:

28VDC

Consumption:

20W max

Digital video:

1080 HD-SDI
100Bt Ethernet 1080 native H264 compression (Other format MPEG available)

Connector:

Mil-DTL-38999 Series III

Optical/Imaging:

Sensor CMOS 3MP Electronic
Rolling Shutter S/N 38.1db

Field of view:

55°x31°
