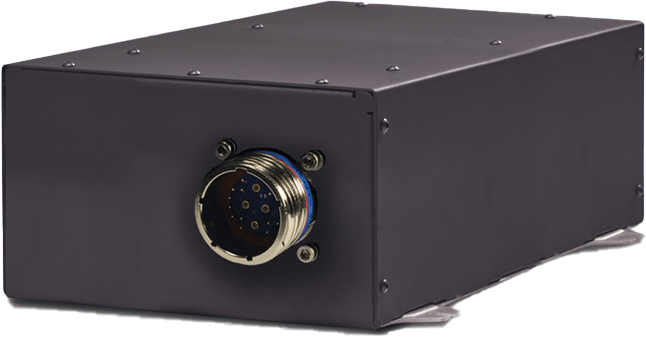

HDC 2

HD-SDI TO ETHERNET CONVERTER
  • All-in-one unit lightweight & easy installation multi-protocol
  • Ultra-low-energy consumption mode
  • 2x hd-sdi & 2x ethernet outputs
  • Converts & multiplexes 2x hd-sdi inputs
Description

Description

The HDC-2 is a lightweight converter that recopies the two HD-SDI inputs and converts it in an Ethernet signal via Gigabit ethernet.

This converter is mainly used to help the connection between our cameras and any IFE system.

This low-consumption unit is very useful for any video cabin management system.

Technical drawing

P/N for: 1000-1120-00X

Technical Drawing

Mechanical specifications

Dimensions (HWD):

7.2×5.71×2.8 (inch)
182.44×144.81×70.86 (mm)

Material:

Aluminum AL2024 with anti-corrosion treatment Black finish

Weight:

0.8 kg
1.76 lbs

HDC 2

Electrical specifications

Power:

28VDC

Consumption:

13W max

Video output:

2x Ethernet
2x HD-SDI

Video intput:

2x HD-SDI
